Product Description
The robust laser measurement tool for tough interior construction sites

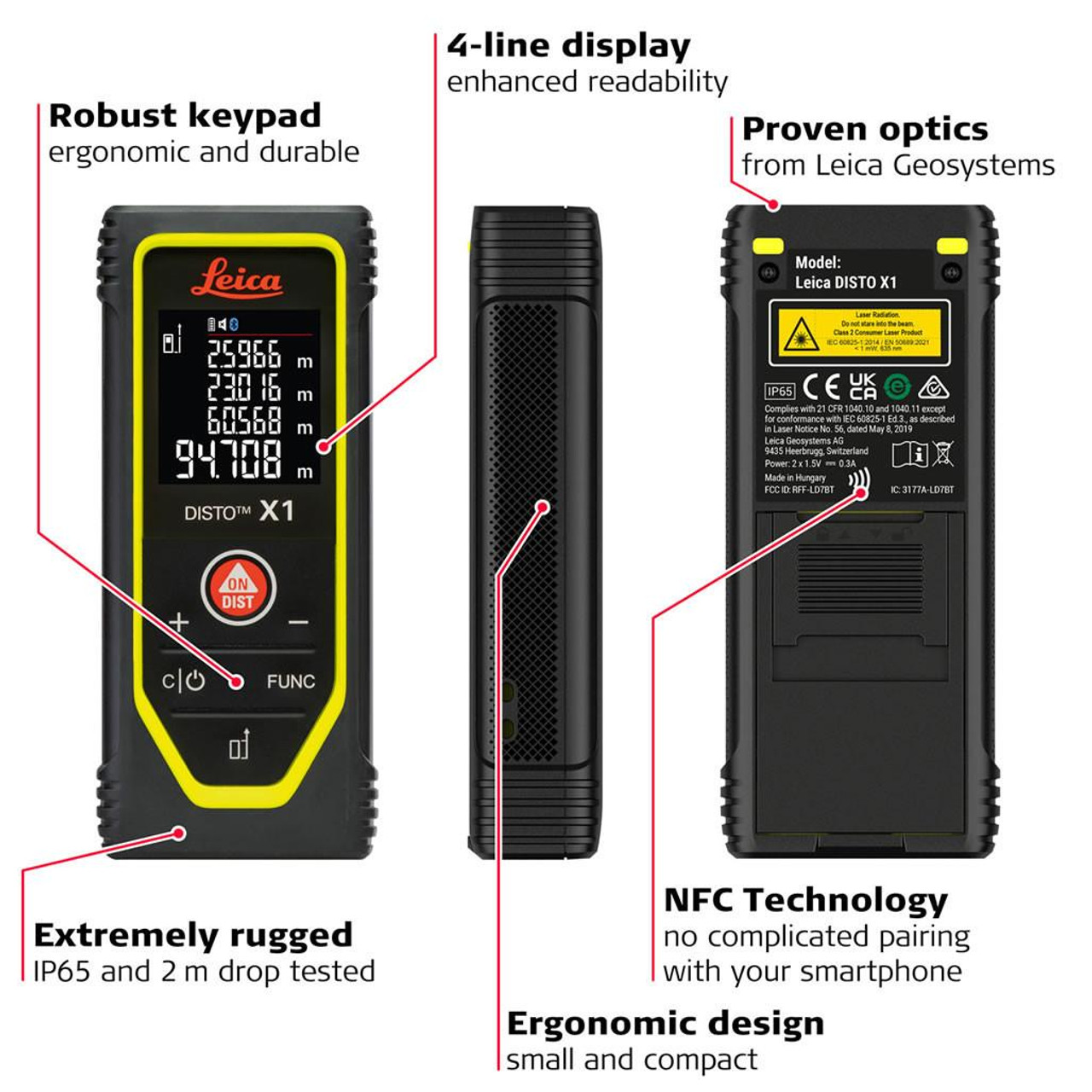

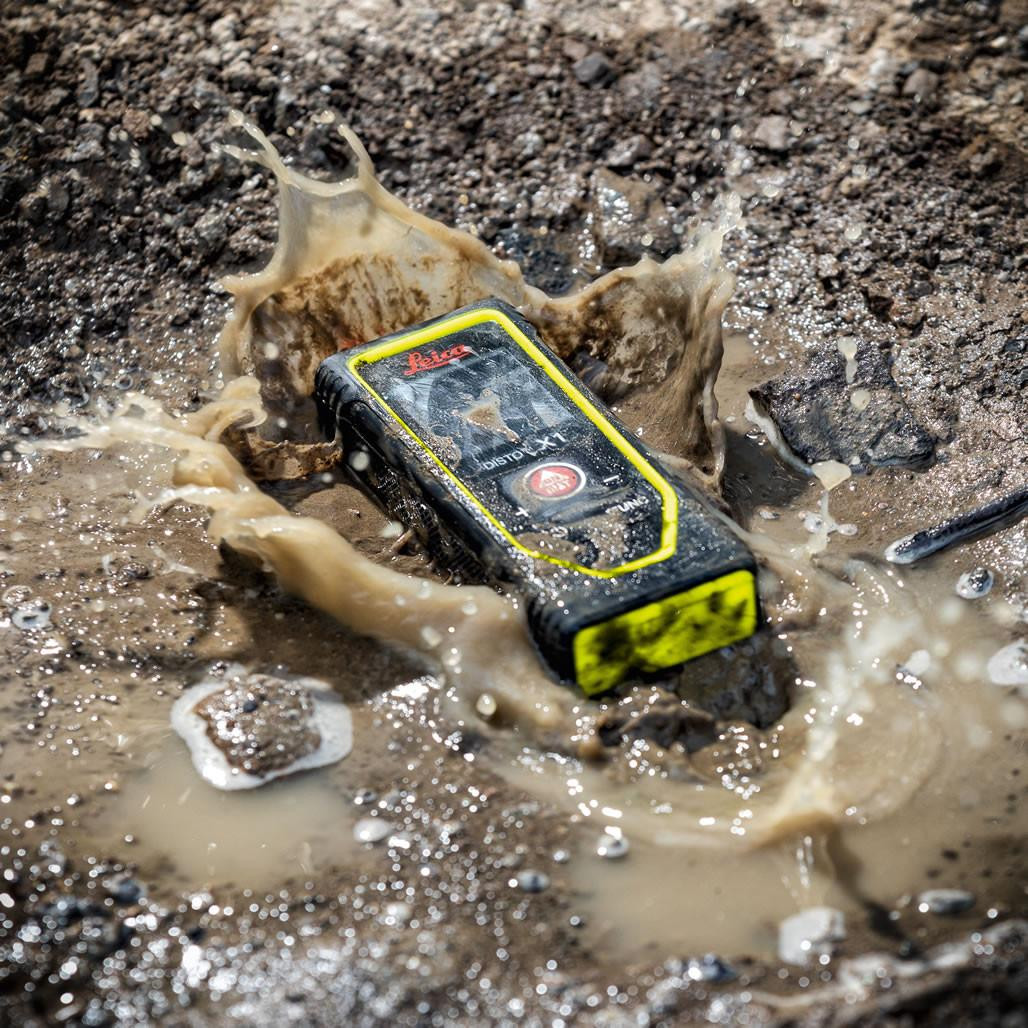

The Leica DISTO X1 is a highly reliable laser measurement tool for tough indoor construction site conditions. Its robust housing, made of rubber and glass-fiber reinforced plastic, is built to withstand drop tests from a height of 2 metres, ensuring durability and consistent accuracy. With IP65 protection, it works perfectly in dusty and wet conditions and can be cleaned under water with ease. Effortlessly connect to the Leica DISTO Plan app using NFC for quick, hassle-free data transfer, visualization and documentation. By streamlining measurement tasks and data management, it increases efficiency and boosts professionalism on any project.
NFC - simplified and streamlined connectivity
The Leica DISTO X1 offers simplified connectivity to the DISTO Plan app via NFC, eliminating the need for a pairing process. By simply placing the device near a smartphone, users can instantly transfer measured values. This NFC connection enables quick and efficient interactions, enhancing user convenience and efficiency. Additionally, data can also be transferred using Bluetooth, providing flexible options for seamless communication between devices.
Fast and reliable measurement performance
The device offers fast and reliable measurement performance tailored for daily construction site tasks, with range and accuracy verified according to ISO 16331-1 standards. This ensures consistent measurement reliability not only in test labs but also in real-world construction environments. An optimized ASIC is integrated to enhance speed and reliability, making it well-suited for practical, on-site applications.

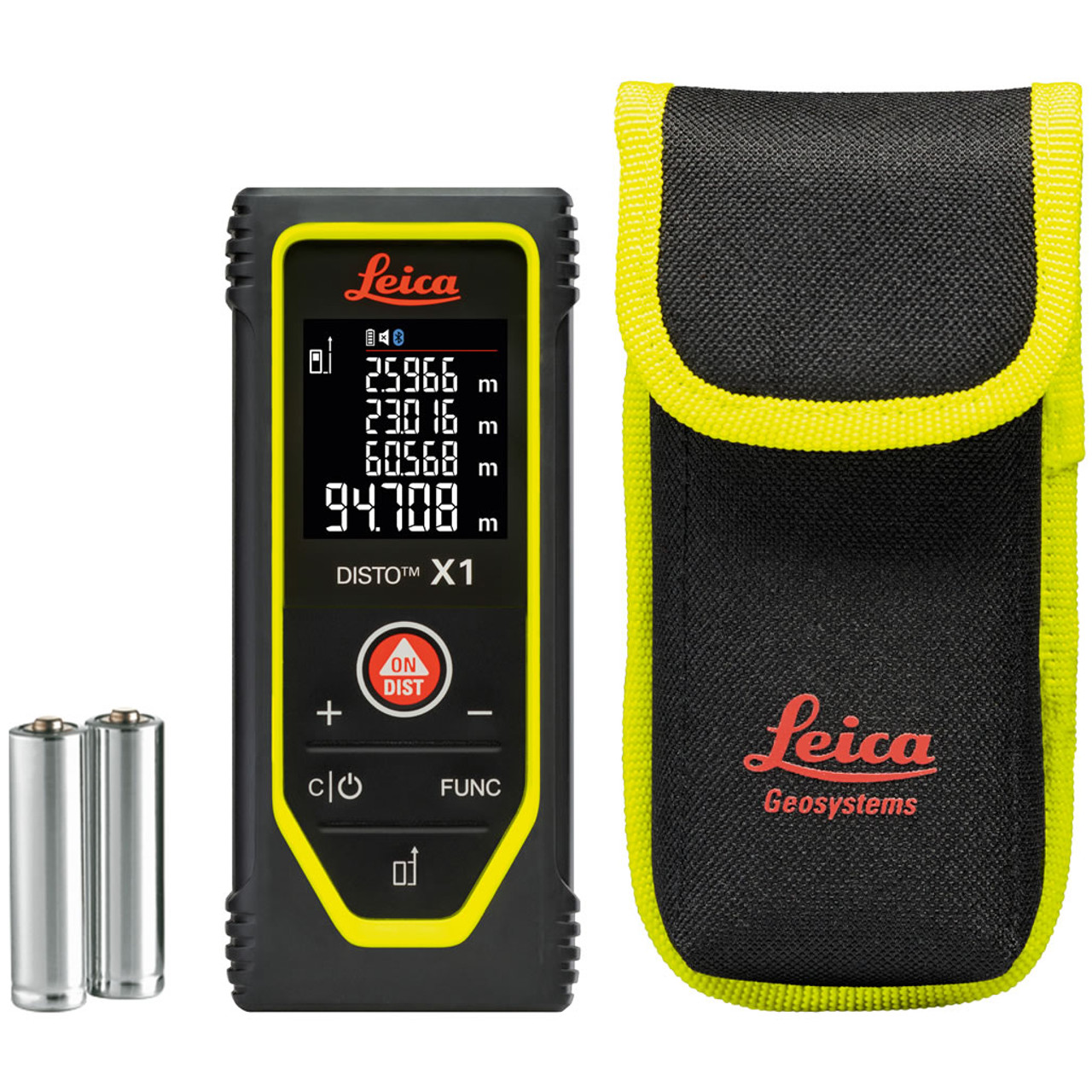

In The Box
Leica DISTO X1
Carry Pouch
Hand Loop
2x AAA Batteries
Quickstart Guide
Warranty Card
Safety Manual
Calibration Certificate
| Technical Data | |
| Typ. distance measuring accuracy | ± 1.5 mm |
| Range | 0.05 up to 100m |
| Measuring units | m, ft, in |
| X-Range Power Technology |
yes |
|
Distance in m Ø of the laser dot in mm |
10, 50, 100 m 6, 30, 60 mm |
| Display illumination | yes |
| Free software for Windows | yes |
| Free App for iOS and Android | yes |
| Wireless interface | Bluetooth® 6.0 & NFC |
| Measurements per set of batteries | up to 7,000* |
| Service life of batteries | up to 14 h* |
| Batteries | type AAA 2 x 1.5 V |
| Protection class | IP65 |
| 2 m drop tested | yes |
| Dimensions | 125 × 53.5 × 25.5 mm |
| Weight with batteries | 129 g |
*Reduced when used with Bluetooth®
